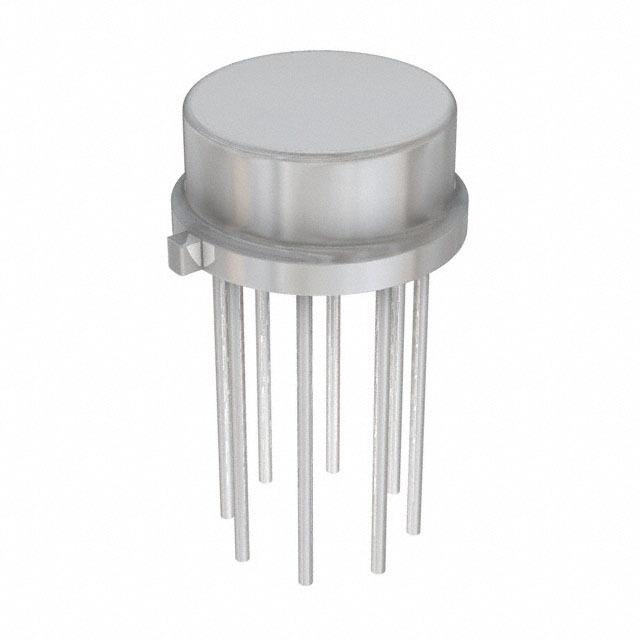

Image is for your reference only,please check specifications for details

LM193H - TI
Manufacturer:
TI
ManyChip's Part#:
MC21210361
Category:
Comparator, Analog Comparator IC
Package:
TO-99-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM193H Analog Comparator, Dual, Precision, 2, 300ns, ± 1V to ± 18V, TO-99, 8Pins
Stock Locations:
Availability:
420 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Single-Supply or Dual Supplies * Wide Range of Supply Voltage * Maximum Rating: 2 V to 36 V * Tested to 30 V: Non-V Devices * Tested to 32 V: V-Suffix Devices * Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA (Typical) Per Comparator * Low Input Bias Current: 25 nA (Typical) * Low Input Offset Current: 3 nA (Typical) (LM139) * Low Input Offset Voltage: 2 mV (Typical) * Common-Mode Input Voltage Range Includes Ground * Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V * Low Output Saturation Voltage * Output Compatible With TTL, MOS, and CMOS

Show

LM193H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	TO-99-8
Output Current	16mA @5V
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Power Dissipation	660 W
Input Offset Voltage	5 mV
Input Bias Current	100 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	660 mW
	Show
Size-Height	4.7 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
