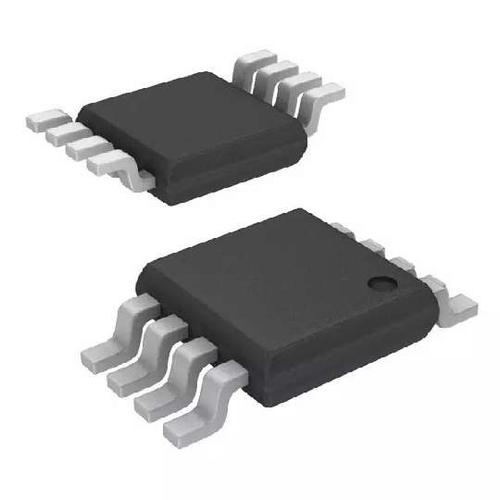

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 2 Circuit 8-MiniSO
LM258AST Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Output Current | 60 mA |
| Supply Current | 700 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 85 dB |
| Bandwidth | 1.1 MHz |
| Slew Rate | 300 mV/μs |
| Gain Bandwidth Product | 1.1 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 20 nA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1.1 MHz |
| Power Dissipation (Max) | 500 mW |
| Minimum CMRR Range | 70 dB |
| Supply Voltage | 3V ~ 30V |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
