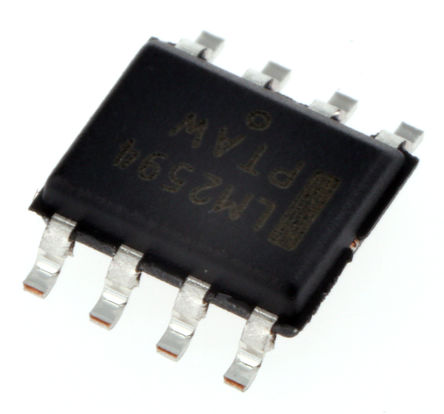

Image is for your reference only,please check specifications for details

LM2594DADJR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5793700
Category:
DC to DC Converter
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 40V Step Down Single-Out 1.23V to 37V 0.5A 8Pin SOIC N T/R
Stock Locations:
Availability:
318 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.99

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM2594DADJR2G is a monolithic Step-Down Switching Regulator ideally suited for easy and convenient design of a step-down switching regulator. The converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages. Self protection features include switch cycle-by-cycle current limit for the output switch, as well as thermal shutdown for complete protection under fault conditions.
TTL shutdown capability
Thermal shutdown and current limit protection
Internal loop compensation

Show

LM2594DADJR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.23V ~ 37V
Output Current	500 mA
Number of Positions	8 Position
Quiescent Current	10 mA
Switching Frequency	180 kHz
Topology	Step-Down
Input Voltage (Max)	40 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.23 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Input Voltage	4.5V ~ 40V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
