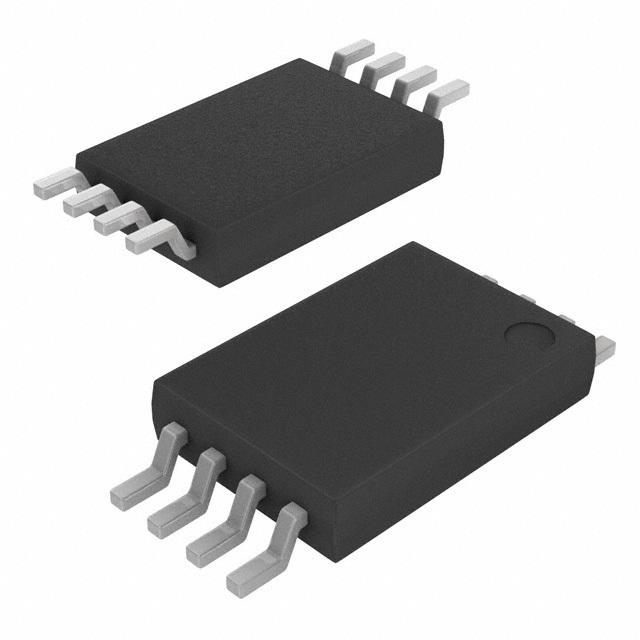

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This device consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
LM2903AVQPWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Output Current | 20 mA |
| Supply Current | 1 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Quiescent Current | 800 µA |
| Input Offset Voltage | 2 mV |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
