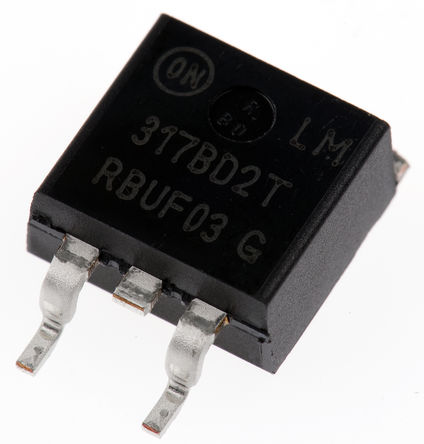

- LM317BD2TG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC1972021
-
Category:Voltage Regulator
-
Package:TO-263-3
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator, Adjustable, 40V primary input, 1.2V to 37V/1.5A/1 Output, TO-263-3
-
Stock Locations:
-
Availability:74 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.27
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM317BD2TG is an adjustable 3-terminal output Positive Voltage Regulator capable of supplying in excess of 1.5A over an output voltage range of 1.2 to 37V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. This regulator serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator or by connecting a fixed resistor between the adjustment and output, the regulator can be used as a precision current regulator.
- Internal thermal overload protection
- Internal short-circuit current limiting constant with temperature
- Output transistor safe area compensation
- Floating operation for high voltage applications
- Eliminates stocking many fixed voltages
LM317BD2TG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Operating Voltage | 3V ~ 40V |
| Current Rating | 1.50 A |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 1.2V ~ 37V |
| Output Current | 1.5 A |
| Number of Positions | 3 Position |
| Polarity | P-Channel |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 2.8 V |
| Output Voltage (Max) | 37 V |
| Output Voltage (Min) | 1.2 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | ≤40 V |
| Show | |
| Size-Length | 10.24 mm |
| Size-Width | 9.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
