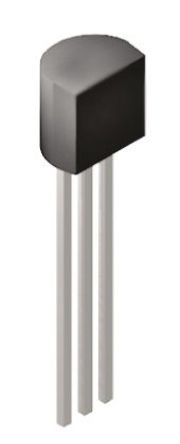

LM317LILP - TI
Manufacturer:
TI
ManyChip's Part#:
MC18767548
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
Standard Voltage Regulator 3/8Pin 100mA Adjustable Positive Regulator LDO Regulator Pos 1.2V to 32V 0.1A 3Pin TO-92 Bulk
Stock Locations:
Availability:
199 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM317LILP is an adjustable 3-terminal Positive-Voltage Regulator capable of supplying 100mA over an output-voltage range of 1.25 to 32V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. The device has a feedback voltage that is relative to the output instead of ground. This ungrounded design allows the device to have superior line and load regulation. This design also allows the device to be used as a current source or current sink using a single resistor. In addition to higher performance than fixed regulators, this regulator offers full overload protection, available only in integrated circuits. Included on the chip is current-limiting and thermal-overload protection. All overload protection circuitry remains fully functional even when ADJUSTMENT is disconnected. Normally, no capacitors are needed unless the device is situated far from the input filter capacitors, in which case an input bypass is needed.
Input regulation typically 0.01% per input-voltage change
0.5% Typically output regulation
80dB Typically ripple rejection

Show

LM317LILP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Number of Outputs	1 Output
Output Voltage	1.2V ~ 32V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	50.0 µA
Output Capacitor Type	Capacitor Free
voltage rating	2.5 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	38 V
Input Voltage (Min)	3.7 V
Output Voltage (Max)	32 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	38V ~ 3.7V
	Show
Size-Length	4.83 mm
Size-Width	3.43 mm
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
