Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 14 Pin |

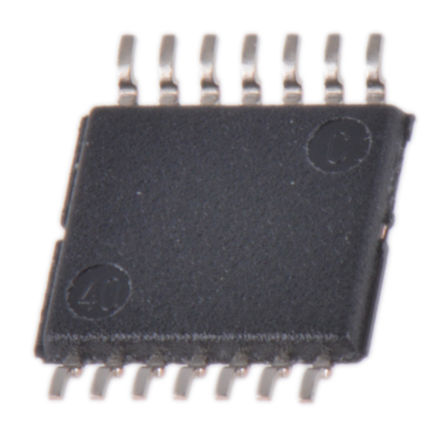

Case/Package | TSSOP-14 |
Halogen Free Status | Halogen Free |
Output Current | 40mA @5V |
Supply Current | 1.4 mA |
Number of Circuits | 4 Circuit |
Number of Channels | 4 Channel |
Number of Positions | 14 Position |
Common Mode Rejection Ratio | 65 dB |
Bandwidth | 1 MHz |
Gain Bandwidth Product | 1 MHz |
Input Offset Voltage | 2 mV |
Input Bias Current | 45 nA |
Operating Temperature (Max) | 70 ℃ |
Operating Temperature (Min) | 0 ℃ |
Gain Bandwidth | 1 MHz |
Minimum CMRR Range | 65 dB |
Supply Voltage | 3V ~ 32V |
Supply Voltage (Max) | 32 V |
Supply Voltage (Min) | 3 V |
Show | |
Size-Length | 5.1 mm |
Size-Width | 4.5 mm |
Size-Height | 1.05 mm |
Operating Temperature | 0℃ ~ 70℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
ECCN Code | EAR99 |
