Description

DESCRIPTION
The LM346 consists of four independent, high gain, internally compensated, low power programmable amplifiers. Two external resistors (Rset) allow the user to program the gain-bandwith product, slew rate, supply current, input bias current, input offset current and input noise. For example the user can trade-off supply current for bandwidth or optimize noise figure for a given source resistance. In a similar way other amplifier characteristics can be tailored to the application.
.PROGRAMMABLE ELECTRICAL CHARAC TERISTICS
.BATTERY POWERED OPERATION
.LOW SUPPLY CURRENT (250µA/amplifier)
.GAIN-BANDWIDTH PRODUCT : 1MHz
.LARGE DC VOLTAGE GAIN : 120dB
.LOW NOISE VOLTAGE : 28nV/VHz
.WIDE POWER SUPPLY RANGE : ±1.5V to ±22V
.CLASSE AB OUTPUT STAGE. NO CROSS OVER DISTORTION
.OVERLOAD PROTECTION FOR INPUTS AND OUTPUTS

Show

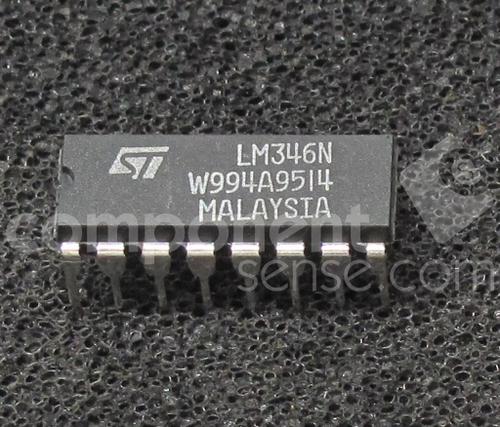

LM346N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Current	1 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Common Mode Rejection Ratio	80 dB
Slew Rate	500 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	500 µV
Input Bias Current	30 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1 MHz
Power Dissipation (Max)	500 mW
Minimum CMRR Range	80 dB
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
