LM394H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin

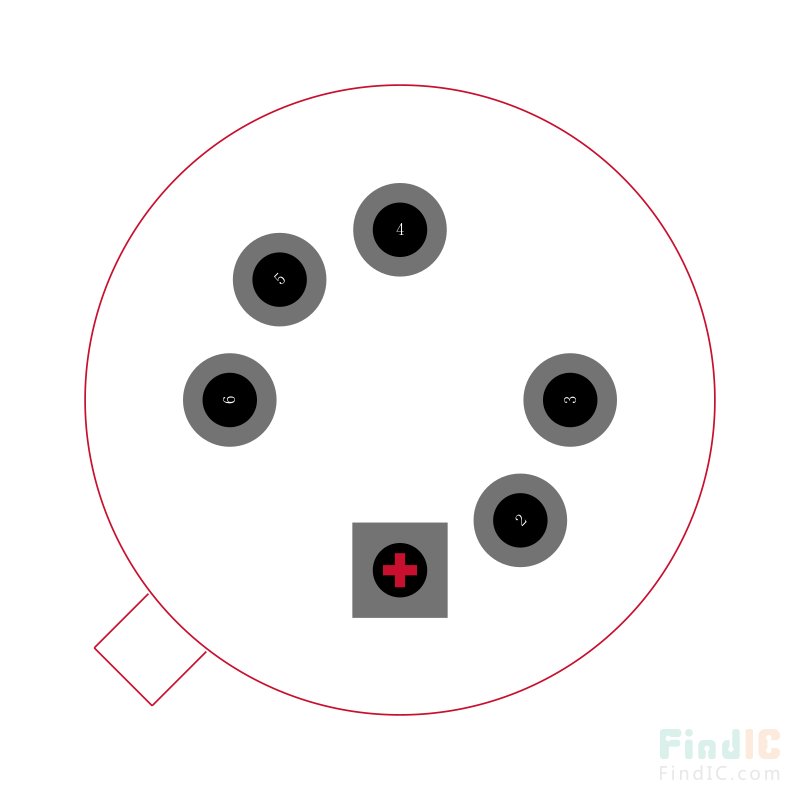

Case/Package	TO-5
Voltage Rating (DC)	20.0 V
Current Rating	20.0 mA
Output Voltage	≤20.0 V
Output Current	≤20.0 mA
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	35 V
Continuous Collector Current	0.02A
	Show
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
