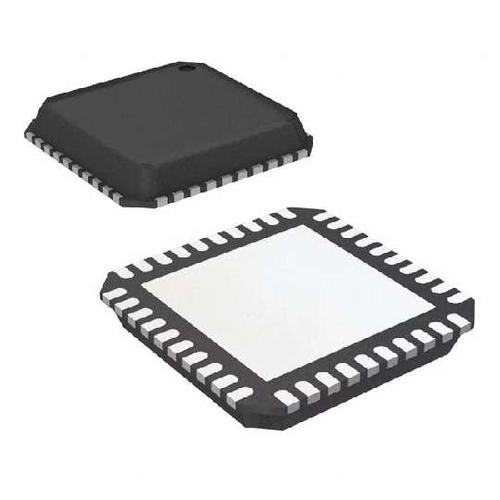

Image is for your reference only,please check specifications for details

LM5140QRWGTQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC4519744
Category:
DC to DC Converter
Package:
VQFN-40
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3.8V to 65V Synchronous Step Down Dual-Out 1.5V to 15V 40A/20A 40Pin VQFNP EP T/R
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 99.26

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM5140-Q1 is a dual synchronous buck controller intended for high voltage wide VIN step-down converter applications. The control method is based on current mode control. Current mode control provides inherent line feedforward, cycle-by-cycle current limiting, and easier loop compensation.
The LM5140-Q1 features adjustable slew rate control to simplify compliance with the CISPR and automotive EMI requirements. The LM5140-Q1 operates at selectable switching frequencies of 2.2 MHz or 440 kHz with the two controller channels switching 180°; out of phase. In light or no-load conditions, the LM5140-Q1 operates in skip cycle mode for improved low power efficiency. The LM5140-Q1 includes a high voltage bias regulator with automatic switchover to an external bias supply to improve efficiency and reduce input current. Additional features include frequency synchronization, cycle-by-cycle current limit, hiccup mode fault protection for sustained overloads, independent power good outputs, and independent enable inputs.

Show

LM5140QRWGTQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	40 Pin
Case/Package	VQFN-40
Supply Voltage (DC)	3.80V (min)
Number of Outputs	2 Output
Output Voltage	1.5V ~ 15V
Output Current	150 mA
Number of Positions	40 Position
Quiescent Current	35.0 µA
Number of Regulated Outputs	2 Output
Rise Time	4 ns
Switching Frequency	2.2 MHz
Topology	Buck
Switching Current	0.25 A
Duty Cycle	50 %
Input Voltage (Max)	65 V
Input Voltage (Min)	3.8 V
Fall Time	3 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	65 V
Supply Voltage (Min)	3.8 V
Input Voltage	65 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
