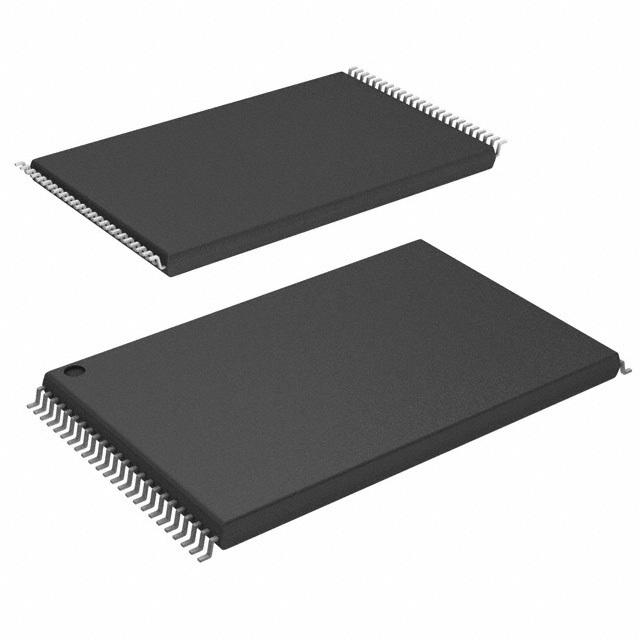

Image is for your reference only,please check specifications for details
- S29JL064J70TFI000 - Cypress Semiconductor
-
Manufacturer:Cypress Semiconductor
-
ManyChip's Part#:MC15421692
-
Category:Flash Memory, Flash
-
Package:TSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:NOR Flash Parallel 3V/3.3V 64Mbit 8M/4M x 8Bit/16Bit 70ns 48Pin TSOP Tray
-
Stock Locations:
-
Availability:74 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 13.57
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The S29JL064J70TFI000 is a 64MB CMOS simultaneous Read/Write Flash Memory organized as 4194304 words of 16-bit each or 8388608 bytes of 8-bit each. Word mode data appears on DQ15-DQ0, byte mode data appears on DQ7-DQ0. The device is designed to be programmed in-system with the standard 3VCC supply and can also be programmed in standard EPROM programmers. The device is available with an access time of 70ns. Standard control pins - chip enable (CE#), write enable (WE#) and output enable (OE#) - control normal read and write operations and avoid bus contention issues. The device requires only a single 3V power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
S29JL064J70TFI000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSOP-48 |
| Supply Current | 16 mA |
| Number of Positions | 48 Position |
| Number of Bits | 8, 16 Bit |
| Access Time | 70 ns |
| Memory Size | 8000000 B |
| Access Time(Max) | 70 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
