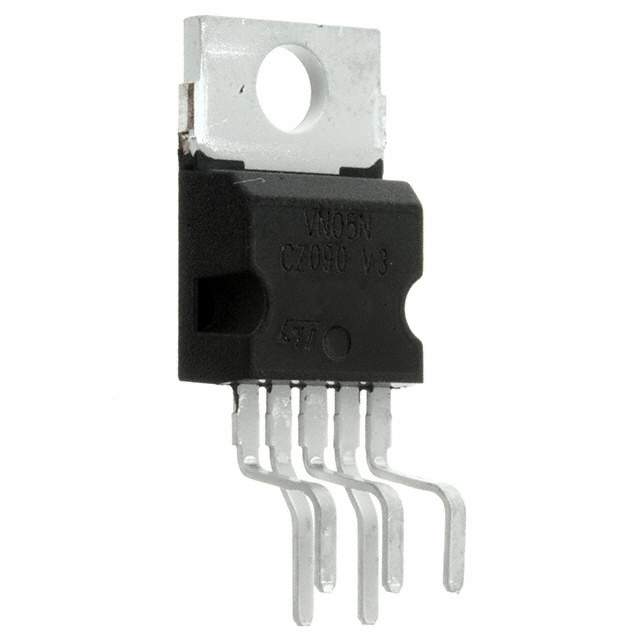

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power Switch/Driver 1:1 N-Channel 6A 5-PENTAWATT
VN02N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 5 Pin |
| Case/Package | Pentawatt-5 |
| Power Rating | 29 W |
| Number of Outputs | 1 Output |
| Output Current | 6 A |
| Supply Current | 50.0 mA |
| Power Dissipation | 29000 mW |
| Output Current (Max) | 6 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 29000 mW |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
