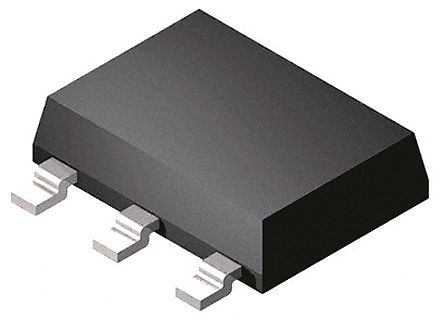

Image is for your reference only,please check specifications for details

NCP1077STAT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC19098880
Category:
AC to DC Converter, AC/DC Power Module
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1077STAT3G AC-DC Off-Line Switcher IC, Flyback, 85VAC - 265VAC, 25W, SOT-223-4
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1077STAT3G is a High-voltage Switcher with 65kHz frequency for low power offline Switched Mode Power Supply (SMPS). It integrates fixed frequency current mode controller with a 700V MOSFET. It offers a high level of integration, including soft-start, frequency-jittering, short-circuit protection, skip-cycle, a maximum peak current set point, ramp compensation and a dynamic self-supply. When the output power demand diminishes, the IC automatically enters frequency fold-back mode and provides excellent efficiency at light loads. When the power demand reduces further, it enters into a skip mode to reduce the standby consumption down to a no load condition. Protection features includes a timer to detect an overload or a short-circuit event, overvoltage protection with auto-recovery and AC input line voltage detection. For improved standby performance, the connection of an auxiliary winding stops the DSS operation and helps to reduce input power consumption below 50mW at high line.
Large creepage distance between high-voltage pins
Skip-cycle operation at low peak currents only - No acoustic noise
Dynamic self-supply - No need for an auxiliary winding
Auto-recovery output short circuit protection with timer-based detection
Auto-recovery overvoltage protection with auxiliary winding operation
Frequency jittering for better EMI signature, including frequency foldback mode
Frequency fold-back to improve efficiency at light load
Internal temperature shutdown
Internal 1ms soft-start
<50mW No load input consumption

Show

NCP1077STAT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Power Rating	25 W
Output Current	800 mA
Breakdown Voltage	700 V
Number of Positions	4 Position
Rise Time	20 ns
Output Power	25 W
Switching Frequency	65 kHz
Duty Cycle	69 %
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Maximum Duty Cycle	73 %
Fall Time	10 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	8.5 V
Supply Voltage (Min)	7.7 V
Input Voltage	7.7V ~ 8.5V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
