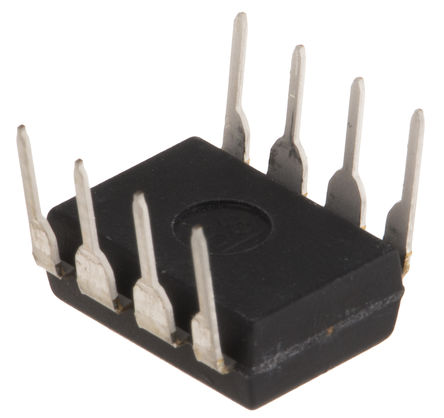

LM555CN - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC5695533
Category:
Clock Chip, Timing IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR LM555CN Timer, Oscillator & Pulse Generator IC, TTL Compatible, Astable, Monostable, 4.5V to 16V, DIP-8
Stock Locations:
Availability:
3,512 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM555CN is a highly stable Controller/Single Timer, capable of producing accurate timing pulses. With monostable operation, the time delay is controlled by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
High Current Drive Capability (200mA)
Adjustable Duty Cycle
Temperature Stability of 0.005%/°C
Timing From µSecond to Hours
Less Than 2µSeconds Turn Off Time
Precision Timing
Pulse Generation
Time Delay Generation
Sequential Timing

Show

LM555CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	4.50V (min)
Current Rating	15.0 A
Input Voltage (DC)	15.0V (max)
Output Current	≤200 mA
Supply Current	7.5 mA
Number of Positions	8 Position
Power Dissipation	0.6 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	600 mW
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.15 mm
Size-Width	6.35 mm
Size-Height	3.15 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
