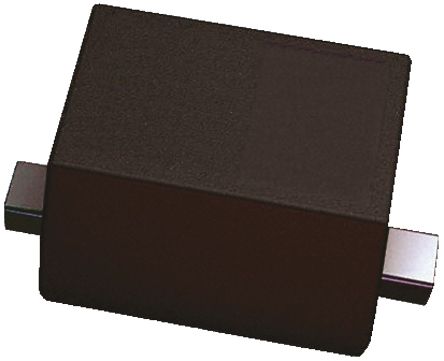

Image is for your reference only,please check specifications for details

BAT5402VH6327XTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC37871696
Category:
Schottky Diode
Package:
SC-79-2
Datasheet:
Datasheet 3D Model
Description:
Rectifier Diode, Schottky, 1Element, 0.2A, 30V V(RRM), Silicon, GREEN, SC-79, 2Pin
Stock Locations:
Availability:
2,648 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
For low-loss, fast-recovery, meter protection,bias isolation and clamping application
Guard ring protected
Low forward voltage
Pb-free (RoHS compliant) package
Qualified according AEC Q1011)

Show

BAT5402VH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SC-79-2
Number of Positions	2 Position
Forward Voltage	800mV @100mA
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	230 mW
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.55 mm
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
