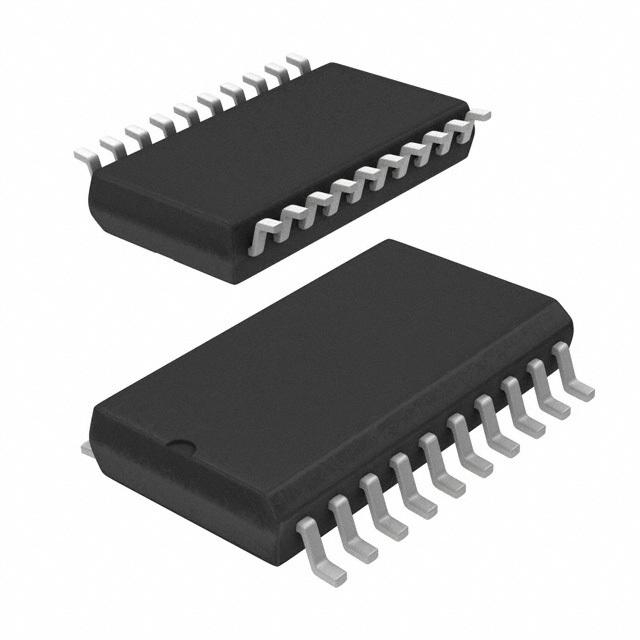

LMF100CIWM - TI
Manufacturer:
TI
ManyChip's Part#:
MC51686016
Category:
Active Filter
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMF100CIWM Switched Capacitor Filter, Switched Capacitor, 4th, 2, 4V, 15V, SOIC
Stock Locations:
Availability:
1,714 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.22

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMF100CIWM is a two independent general-purpose high-performance Switched Capacitor Filter with an external clock and two to four resistors, each filter block can realize various second-order and first-order filtering functions. Each block has three outputs. One output can be configured to perform an allpass, highpass or notch function. The other two outputs perform bandpass and lowpass functions. The center frequency of each filter stage is tuned by using an external clock or a combination of a clock and resistor ratio. Up to a fourth-order biquadratic function can be realized with one LMF100. This allows for the production of a very low-offset, high-frequency filter building block. The LMF100 is pin-compatible with the industry standard MF10, but provides greatly improved performance.
Wide 4 to 15V power supply range
Operation up to 100kHz
-60dB Low crosstalk
Clock to center frequency ratio accuracy ±0.2% (typical)
