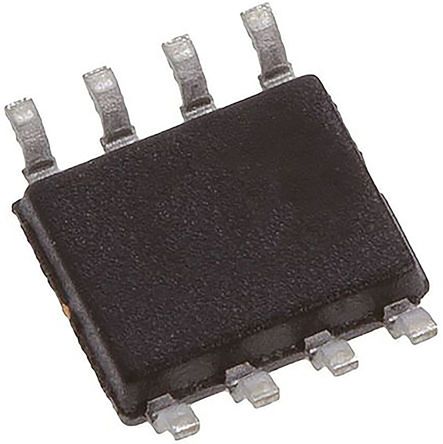

Image is for your reference only,please check specifications for details

LMR14050SDDA - TI
Manufacturer:
TI
ManyChip's Part#:
MC942683
Category:
Voltage Regulator
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4V to 40V Step Down Single-Out 1V to 36V 5A Automotive 8Pin HSOP EP Tube
Stock Locations:
Availability:
248 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMR14050SDDA is a SIMPLE SWITCHER® Step-down Regulator with an integrated high-side MOSFET. The regulator"s quiescent current is 40µA in sleep-mode, which is suitable for battery-powered systems. An ultra-low 1µA current in shutdown mode can further prolong battery life. A wide adjustable switching frequency range allows either efficiency or external component size to be optimized. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components of the device. A precision enable input allows simplification of regulator control and system power sequencing. The device also has built-in protection features such as cycle-by-cycle current limit, thermal sensing and shutdown due to excessive power dissipation and output overvoltage protection.
Current-mode control
Frequency synchronization to external clock
Internal compensation for ease of use
High duty cycle operation supported
Precision enable input
External soft-start function
Thermal, overvoltage and short-circuit protection
90mR High-side MOSFET
75ns Minimum switch-ON time
1µA Shutdown current
Green product and no Sb/Br

Show

LMR14050SDDA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	1 Output
Output Voltage	1V ~ 36V
Output Current	5 A
Number of Positions	8 Position
Quiescent Current	40.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.2 MHz
Input Voltage (Max)	40 V
Input Voltage (Min)	4 V
Output Voltage (Max)	28 V
Output Voltage (Min)	800 mV
Output Current (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	4 V
Input Voltage	4V ~ 40V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
