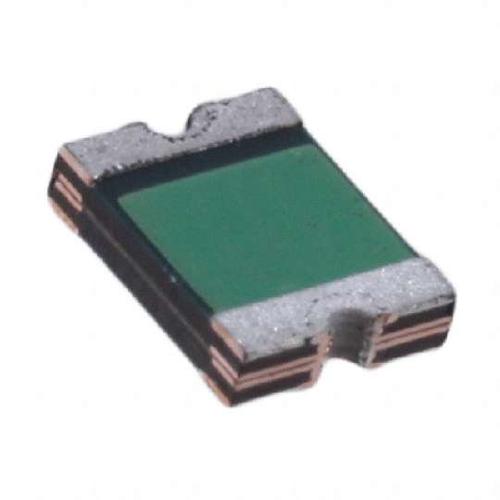

Image is for your reference only,please check specifications for details
- 0ZCH0010FF2E - Bel Fuse Inc.
-
Manufacturer:Bel Fuse Inc.
-
ManyChip's Part#:MC13214246
-
Category:Fuses
-
Package:1210
-
Datasheet:Datasheet 3D Model
-
Description:Перезапускаемый PTC-течиль мощностью 0,01 А (режим хранения), 0,25 А (момент отказа), напряжение 60 ВDC, максимальная нагрузка 10 А, мощность 0,6 Вт, время срабатывания 1,5 секунды, сопротивление проводника 1,6 Ом, используется технология SMD Solder Pad 1210 T/R.
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Возобновление работы после отказа течилья стало гораздо проще благодаря этому перезапускаемому PTC-течилю модели 0ZCH0010FF2E от Bel Fuse! Максимальная нагрузка этого течилья составляет 10 А. Минимальная рабочая температура – -40 °C, максимальная – 85 °C. У течилья два терминала. Подключите его к печатной плате с использованием технологии SMD Solder Pad для наилучших результатов. Длина продукта составляет 3,43 (максимум) мм, высота – 1,15 (максимум) мм, глубина – 2,8 (максимум) мм.
0ZCH0010FF2E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Time to Trip | 1.5 s |
| Power Dissipation | 0.6 W |
| Resistance | 15 Ω |
| Holding Current | 100 mA |
| Trip Current | 250 mA |
| Current Rating (Max) | 10 A |
| Holding Current (Max) | 100 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 60 VDC |
| Voltage Rating | 60 VDC |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
