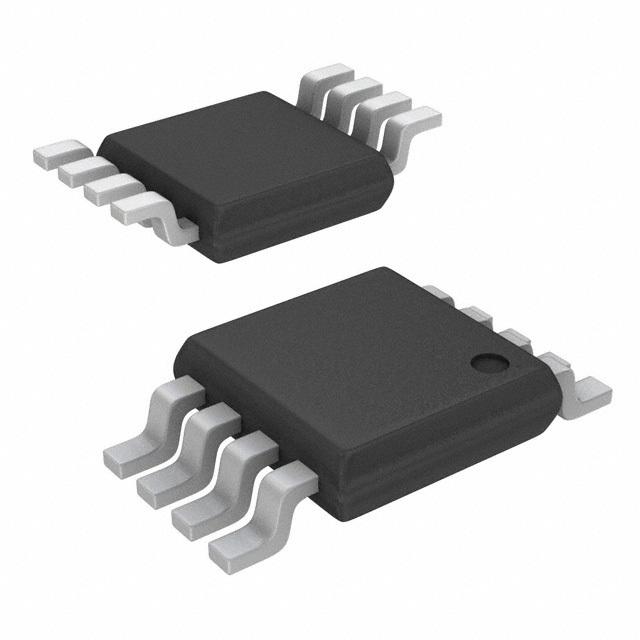

Image is for your reference only,please check specifications for details
- LMV358MM - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC111264907
-
Category:Operational Amplifier, OP Amp IC
-
Package:TSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS LMV358MM Operational Amplifier, Single, 1 Amplifier, 1MHz, 1V/µs, 2.7V to 5.5V, VSSOP, 8Pins
-
Stock Locations:
-
Availability:9,478 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.52
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The LMV358-N/LMV324-N are low voltage (2.7V to 5.5V) versions of the dual and quad commodity op amps LM358/LM324 (5V to 30V). The LMV321-N is the single channel version. The LMV321-N/LMV358-N/LMV324-N are the most cost effective solutions for applications where low voltage operation, space efficiency, and low price are important. They offer specifications that meet or exceed the familiar LM358/LM324. The LMV321-N/LMV358-N/LMV324-N have rail-to-rail output swing capability and the input common-mode voltage range includes ground. They all exhibit excellent speed to power ratio, achieving 1 MHz of bandwidth and 1 V/µs slew rate with low supply current.
- FEATURES
- • (For V+ = 5V and V− = 0V, unless otherwise specified)
- • LMV321-N, LMV358-N, and LMV324-N are
- available in Automotive AEC-Q100 Grade 1 & 3
- versions
- • Guaranteed 2.7V and 5V performance
- • No crossover distortion
- • Industrial temperature range −40°C to +125°C
- • Gain-bandwidth product 1 MHz
- • Low supply current
- • LMV321-N 130 μA
- • LMV358-N 210 μA
- • LMV324-N 410 μA
- • Rail-to-rail output swing @ 10 kΩ V+ − 10 mV & V− \+ 65 mV
- • VCM Range −0.2V to V+ − 0.8V
- APPLICATIONS
- • Active filters
- • General purpose low voltage applications
- • General purpose portable devices
LMV358MM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Output Current | 60.0 mA |
| Supply Current | 210 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Input Offset Drift | 5.00 µV/K |
| Bandwidth | 1 MHz |
| Slew Rate | 1.00 V/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 1.7 mV |
| Input Bias Current | 15 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1 MHz |
| Minimum CMRR Range | 50 dB |
| Supply Voltage | 2.7V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/06/15 |
