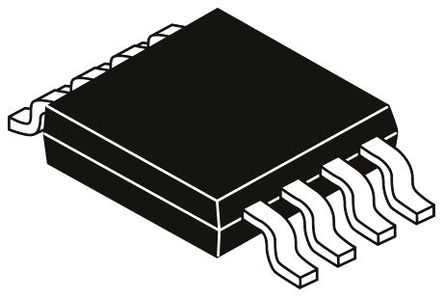

Image is for your reference only,please check specifications for details
- LMV393DMR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC15231089
-
Category:Comparator, Analog Comparator IC
-
Package:Micro-8
-
Datasheet:Datasheet 3D Model
-
Description:LMV Series 5V 1nA SMT Dual General Purpose, Low Voltage Comparator - MICRO-8
-
Stock Locations:
-
Availability:1,860 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.3
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LMV331 is a CMOS single channel, general purpose, low voltage comparator. The LMV393 and LMV339 are dual and quad channel versions, respectively. The LMV331/393/339 are specified for 2.7 V to 5 V performance, have excellent input common−mode range, low quiescent current, and are available in several space saving packages.
- Features
- • Guaranteed 2.7 V and 5 V Performance
- • Input Common−mode Voltage Range Extends to Ground
- • Open Drain Output for Wired−OR Applications
- • Low Quiescent Current: 60 A/channel TYP @ 5 V
- • Low Saturation Voltage 200 mV TYP @ 5 V
- • Propagation Delay 200 ns TYP @ 5 V
- • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
- Typical Applications
- • Battery Monitors
- • Notebooks and PDA’s
- • General Purpose Portable Devices
- • General Purpose Low Voltage Applications
LMV393DMR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | Micro-8 |
| Halogen Free Status | Halogen Free |
| Output Current | 84mA @5V |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Thermal Resistance | 238 ℃/W |
| Input Offset Voltage | 9 mV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 5V |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.95 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
