Description

The Common Cathode Switching Diode is designed for use in ultra high speed switching applications. This device is housed in the SC-70 package which is designed for low power surface mount applications.
Features
---
|
Fast Switching Speed trr < 6ns
Pb-Free Package is Available
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Show

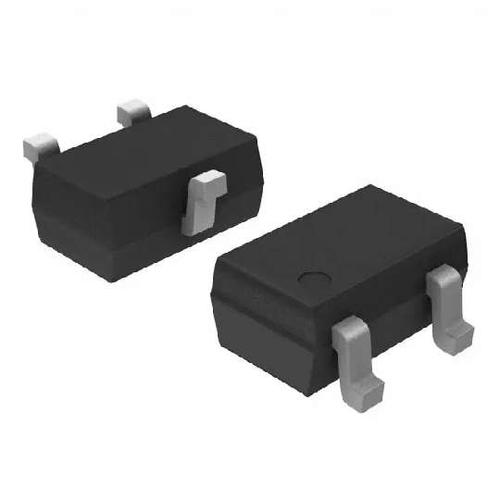

SBAV70WT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	1.25V @150mA
Power Dissipation	200 mW
Reverse recovery time	6 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	0.2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
