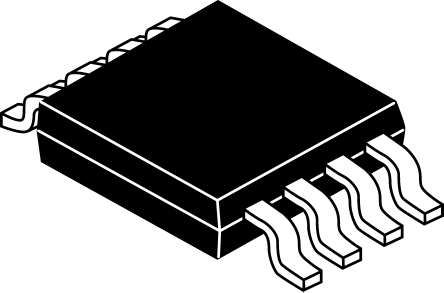

Image is for your reference only,please check specifications for details

LP2951ACDMR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3029936
Category:
Voltage Regulator
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR LP2951ACDMR2G LDO Voltage Regulator, Adjustable, 30V in, 350mV drop., 1.25V-5.025V/100mA out, µSMD-8
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Having trouble maintaining a steady voltage? This LDO LP2951ACDMR2G linear regulator from ON Semiconductor will give you control over the voltage levels of your circuit. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.03@100uA|0.35@100mA V. This voltage regulation device"s single output can produce a current up to 0.1(Typ) A. By working with a maximum input voltage of 30 V, this is the best way to control the power in your circuit. With an adjustable|fixed output that has a voltage of 1.25 to 29|5 V, this is power management at its best. Using a load regulation of 0.1% and line regulation of 0.1% is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.08@100uA|0.45@100mA V.

Show

LP2951ACDMR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	30.0V (max)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	4.975V ~ 5.025V
Output Current	100 mA
Supply Current	120µA ~ 12mA
Number of Positions	8 Position
Polarity	P-Channel
Quiescent Current	75 µA
voltage rating	350 mV
Input Voltage (Max)	30 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	30 V
Output Voltage (Min)	1.25 V
Output Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	≤30 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
