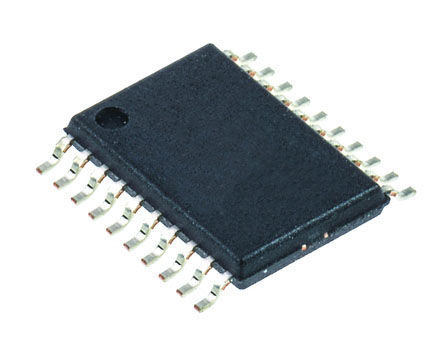

TPS54372PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC49884833
Category:
Voltage Regulator
Package:
HTSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3V to 6V Step Down Single-Out 0.2V to 4.5V 3A 20Pin HTSSOP EP Tube
Stock Locations:
Availability:
294 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.35

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

As a member of the SWIFT family of dc/dc regulators, the TPS54372 low-input voltage, high-output current, synchronous-buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a status output to indicate valid operating conditions.
The TPS54372 is available in a thermally enhanced 20-pin TSSOP (PWP) PowerPAD package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

Show

TPS54372PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	HTSSOP-20
Frequency	700 kHz
Supply Voltage (DC)	4.50V (max)
Number of Outputs	1 Output
Input Voltage (DC)	6.00 V
Output Voltage	0.2V ~ 4.5V
Output Current	3 A
Number of Positions	20 Position
Input Current	8.40 mA
Power Dissipation	3.85 W
Quiescent Current	6.20 mA
Number of Regulated Outputs	1 Output
Output Power	3.85 W
Switching Frequency	700 kHz
Thermal Shutdown	Yes
Topology	Buck
Input Bias Current	6.20 mA
Input Voltage (Max)	6 V
Input Voltage (Min)	3 V
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.2 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 6V
	Show
Size-Length	6.6 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
