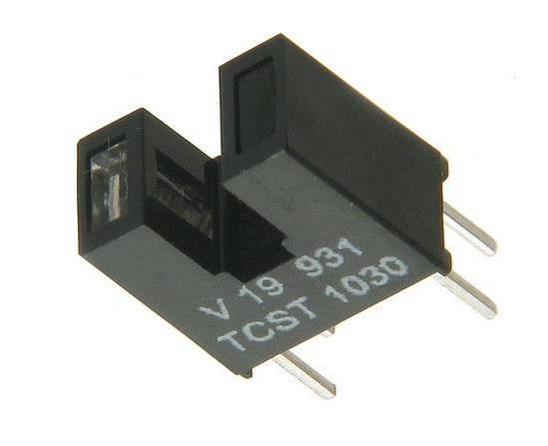

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

TCST1030 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Lead-4
Power Rating	0.25 W
Wavelength	950 nm
Peak Wavelength	950 nm
Power Dissipation	0.25 W
Breakdown Voltage (Collector to Emitter)	70 V
Forward Current	60 mA
Reverse Breakdown Voltage	6 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	8.3 mm
Size-Width	4.7 mm
Size-Height	8.15 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
