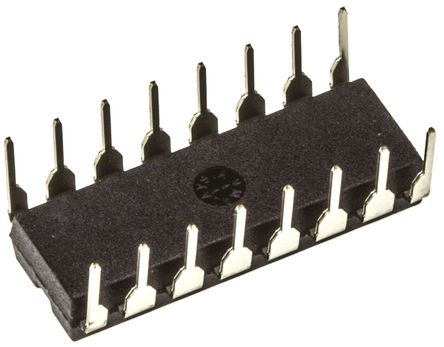

- DAC714P - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC32148035
-
Category:Digital to Analog
-
Package:PDIP-16
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS DAC714P – цифрово-аналоговый конвертер, 16-битный, скорость 86 ксп/сек, серийный интерфейс, диапазон напряжений ±11,4 В до ±16,5 В, формата DIP, количество контактов – 16.
-
Stock Locations:
-
Availability:310 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 33.65
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DAC714P представляет собой полноценный монолитный цифрово-аналоговый конвертер 16-битного размера. Он включает в себя отсчетную сигнали, компенсирующую температуру на уровне 10 В, усилитель тока в напряжение, высокоскоростной синхронный серийный интерфейс, выходной устройство для использования в составе множества конвертеров, а также асинхронную функцию очистки, которая немедленно приводит напряжение на выходе к среднему значению. Регулировка коэффициента усиления и биполярных отклонений возможна с помощью внешних петлевых регуляторов или других цифрово-аналоговых конвертеров. Устройство защищено от короткого замыкания с землей.
- Серийный цифровой интерфейс
- Линейность до ±1 локальной единицы измерения
- Точная отсчетная сигнали
- Низкий уровень шума – 120 нВ/(Гц), включая отсчетную сигнал
- Зеленый цвет корпуса, отсутствие в составе Sb/Br
DAC714P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | PDIP-16 |
| Supply Voltage (DC) | -15.0 V (min) |
| Number of Outputs | 1 Output |
| Supply Current | 22.0 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 0.625 W |
| Sample Rate | 86 ksps |
| Power Consumption | 525 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 625 mW |
| Number of DACs | 1 DAC |
| Show | |
| Size-Length | 19.3 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
