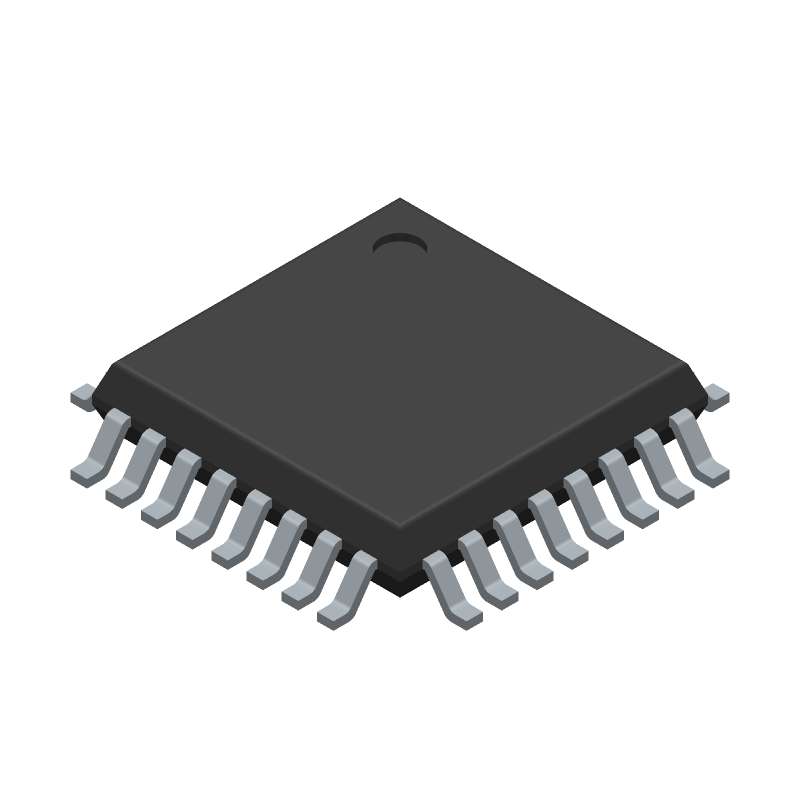

Image is for your reference only,please check specifications for details
- LP8860DQVFPRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC19010175
-
Category:LED Driver, LED Display Driver
-
Package:HLQFP-32
-
Datasheet:Datasheet 3D Model
-
Description:LED Lighting Drivers Automotive Catalog Low-EMI, High-Performance 4Channel LED Driver 32-HLQFP -40℃ to 125℃
-
Stock Locations:
-
Availability:1,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 106.45
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LP8860-Q1 is an automotive high-efficiency LED driver with boost controller. It has 4 high-precision current sinks that can be controlled by a PWM input signal, an SPI or I2C master, or both.
- The boost converter has adaptive output voltage control based on the headroom voltages of the LED current sinks. This feature minimizes the power consumption by adjusting the voltage to the lowest sufficient level in all conditions. A wide-range adjustable frequency allows the LP8860-Q1 to avoid disturbance for AM radio band.
- The LP8860-Q1 supports built-in hybrid PWM and current dimming, which reduces EMI, extends the LED lifetime, and increases the total optical efficiency. Phase-shift PWM reduces audible noise and output ripple.
- To request a full data sheet or other design resources: request LP8860-Q1.
LP8860DQVFPRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | HLQFP-32 |
| Frequency | 100kHz ~ 2.2MHz |
| Number of Outputs | 4 Output |
| Output Voltage | 48 V |
| Output Current | 150 mA |
| Quiescent Current | 2.50 mA |
| Topology | Boost |
| Output Voltage (Max) | 40 V |
| Output Voltage (Min) | 16 V |
| Output Current (Max) | 0.6 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Input Voltage | 3V ~ 48V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
