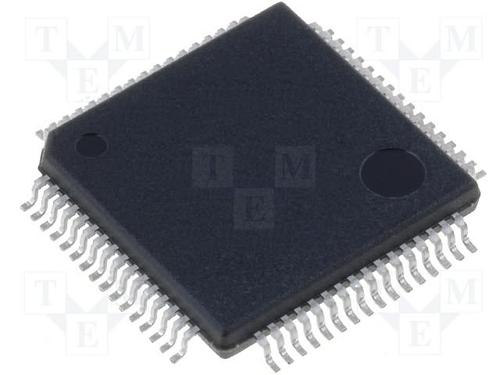

Image is for your reference only,please check specifications for details
- LPC2142FBD64 - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC16874623
-
Category:32-Bit Microcontroller IC
-
Package:LQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:Single-chip 16Bit/32Bit microcontrollers; up to 512KB flash with ISP/IAP, USB 2.0 full-speed device, 10Bit ADC and D
-
Stock Locations:
-
Availability:4,466 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.43
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The LPC2141/42/44/46/48 microcontrollers are based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with embedded high-speed flash memory ranging from 32 kB to 512 kB. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.
- Due to their tiny size and low power consumption, LPC2141/42/44/46/48 are ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. Serial communications interfaces ranging from a USB 2.0 Full-speed device, multiple UARTs, SPI, SSP to I²C-bus and on-chip SRAM of 8 kB up to 40 kB, make these devices very well suited for communication gateways and protocol converters, soft modems, voice recognition and low end imaging, providing both large buffer size and high processing power. Various 32-bit timers, single or dual 10-bit ADC(s), 10-bit DAC, PWM channels and 45 fast GPIO lines with up to nine edge or level sensitive external interrupt pins make these microcontrollers suitable for industrial control and medical systems.
- MoreLess
- ## Features
- **2.1 Key features**
- * 16-bit/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package.
- * 8 kB to 40 kB of on-chip static RAM and 32 kB to 512 kB of on-chip flash memory. 128-bit wide interface/accelerator enables high-speed 60 MHz operation.
- * In-System Programming/In-Application Programming (ISP/IAP) via on-chip boot loader software. Single flash sector or full chip erase in 400 ms and programming of 256 B in 1 ms.
- * EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high-speed tracing of instruction execution.
- * USB 2.0 Full-speed compliant device controller with 2 kB of endpoint RAM. In addition, the LPC2146/48 provides 8 kB of on-chip RAM accessible to USB by DMA.
- * One or two (LPC2141/42 vs. LPC2144/46/48) 10-bit ADCs provide a total of 6/14 analog inputs, with conversion times as low as 2.44 µs per channel.
- * Single 10-bit DAC provides variable analog output (LPC2142/44/46/48 only).
- * Two 32-bit timers/external event counters (with four capture and four compare channels each), PWM unit (six outputs) and watchdog.
- * Low power Real-Time Clock (RTC) with independent power and 32 kHz clock input.
- * Multiple serial interfaces including two UARTs (16C550), two Fast I²C-bus (400 kbit/s), SPI and SSP with buffering and variable data length capabilities.
- * Vectored Interrupt Controller (VIC) with configurable priorities and vector addresses.
- * Up to 45 of 5 V tolerant fast general purpose I/O pins in a tiny LQFP64 package.
- * Up to 21 external interrupt pins available.
- * 60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of 100 µs.
- * On-chip integrated oscillator operates with an external crystal from 1 MHz to 25 MHz.
- * Power saving modes include Idle and Power-down.
- * Individual enable/disable of peripheral functions as well as peripheral clock scaling for additional power optimization.
- * Processor wake-up from Power-down mode via external interrupt or BOD.
- * Single power supply chip with POR and BOD circuits:
- * CPU operating voltage range of 3.0 V to 3.6 V (3.3 V ± 10 %) with 5 V tolerant I/O pads.
- ## Features
LPC2142FBD64 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | LQFP-64 |
| Supply Voltage (DC) | 3.00V (min) |
| Operating Voltage | 3VDC ~ 3.6VDC |
| Number of Outputs | 45 Output |
| Number of Positions | 64 Position |
| Clock Speed | 60 MHz |
| RAM Memory Size | 16 KB |
| FLASH Memory Size | 64 KB |
| Memory Size | 64000 B |
| Number of Inputs and Outputs | 45 Input IO |
| Number of Inputs | 44 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
