Description
- General Description
- N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protective functions.
- Features
- • Short circuit protection with latch
- • Current limitation
- • Overload protection
- • Thermal shutdown with restart
- • Overvoltage protection (including load dump)
- • Loss of ground protection
- • Loss of Vbb protection (with external diode for charged inductive loads)
- • Very low standby current
- • Fast demagnetization of inductive loads
- • Electrostatic discharge (ESD) protection
- • Optimized static electromagnetic compatibility (EMC)
- Application
- • Power switch with current sense diagnostic feedback for 12V and 24 V DC grounded loads
- • All types of resistive, inductive and capacitive loads
- • Replaces electromechanical relays, fuses and discrete circuits

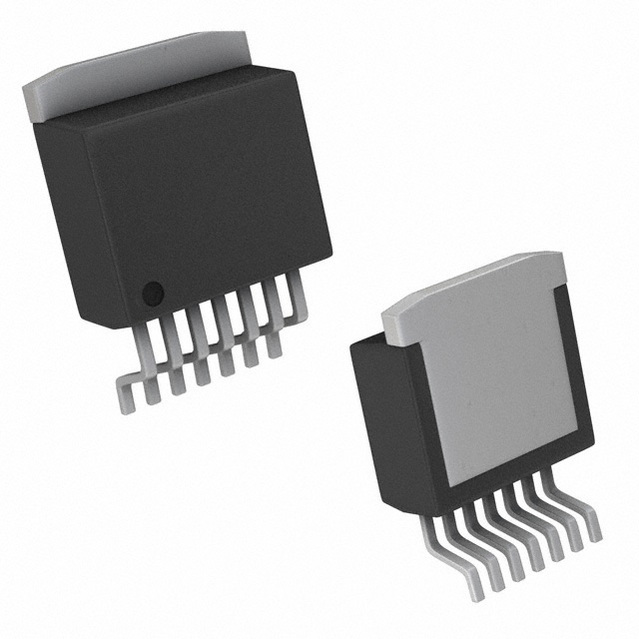

BTS6144B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | TO-263-8 |
| Number of Outputs | 1 Output |
| Output Current | 9.5 A |
| Power Dissipation | 81 W |
| Output Current (Max) | 9.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage | 5.5V ~ 38V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
