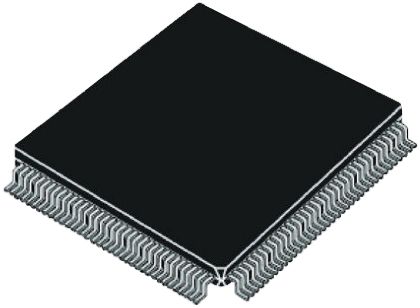

LPC2378FBD144 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC8119146
Category:
Microcontroller, MCU IC
Package:
LQFP
Datasheet:
Datasheet 3D Model
Description:
Single-chip 16Bit/32Bit microcontrollers; 512KB flash with ISP/IAP, Ethernet, USB 2.0, CAN, and 10Bit ADC/DAC
Stock Locations:
Availability:
1,938 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 21.8

Updated at 06/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The LPC2378 is an ARM7 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 72 MHz. Features include 512 kB of flash memory, 58 kB of SRAM, Ethernet MAC, USB Device, DMA controller, 4 UARTs, 2 CAN channels, 2 SSP, 1 SPI, 3 I2C, I2S, 8-channel 10-bit ADC, 10-bit DAC, PWM, 4 general purpose timers, low power Real-Time Clock with separate battery supply, and up to 104 general purpose I/O pins. The LPC2378 is pin-compatible to the LPC176x Cortex-M3 MCU series.
MoreLess
## Features
* ARM7TDMI-S processor, running at up to 72 MHz
* Up to 512 kB on-chip flash program memory
* 32 kB of SRAM on the ARM local bus for high performance CPU access
* 16 kB SRAM for Ethernet interface
* 8 kB SRAM for general purpose DMA use
* Dual Advanced High-performance Bus (AHB) system
* EMC provides support for static devices
* Advanced Vectored Interrupt Controller (VIC)
* General Purpose DMA controller (GPDMA) on AHB
* Ethernet MAC with associated DMA controller
* Four UARTs with fractional baud rate generation
* USB 2.0 full-speed device with on-chip PHY and associated DMA controller
* SPI controller
* CAN controller with two channels
* Two SSP controllers with FIFO and multi-protocol capabilities
* Three I2C-bus interfaces
* I2S (Inter-IC Sound) interface for digital audio input or output
* SD/MMC memory card interface
* 104 General purpose I/O pins with configurable pull-up/down resistors
* 10-bit ADC with input multiplexing among 8 pins
* 10-bit DAC
* Four general purpose timers/counters
* One PWM/timer block with support for three-phase motor control
* Real-Time Clock (RTC)
* 2 kB SRAM powered from the RTC power pin
* WatchDog Timer (WDT)
* Standard ARM test/debug interface for compatibility with existing tools
* Emulation trace module supports real-time trace
* Single 3.3 V power supply (3.0 V to 3.6 V)
* Four reduced power modes: idle, sleep, power-down, and deep power-down
* Four external interrupt inputs configurable as edge/level sensitive
* Processor wake-up from Power-down mode
* Two independent power domains allow fine-tuning of power consumption
* Each peripheral has its own clock divider for further power saving
* Brownout detect with separate thresholds for interrupt and forced reset
* On-chip power-on reset
* On-chip crystal oscillator with an operating range of 1 MHz to 25 MHz
* 4 MHz internal RC oscillator trimmed to 1 % accuracy
* On-chip PLL allows CPU operation up to the maximum CPU rate
* Boundary scan for simplified board testing
## Target Applications
* Industrial control
* Medical systems
* Protocol converter
* Communications
## Features

Show

LPC2378FBD144 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	144 Pin
Case/Package	LQFP
Operating Voltage	3V ~ 3.6V
Clock Speed	72 MHz
RAM Memory Size	58 kB
FLASH Memory Size	524288 B
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Number of DACs	1 DAC
	Show
Size-Length	20.1 mm
Size-Width	20.1 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
