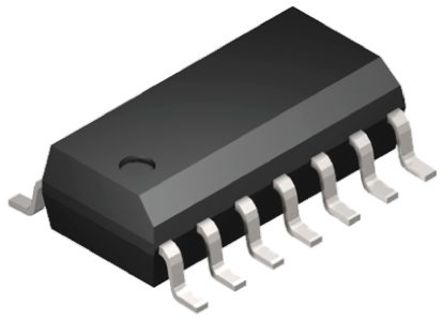

Image is for your reference only,please check specifications for details

INA163UA - TI
Manufacturer:
TI
ManyChip's Part#:
MC5050475
Category:
Amplifier, Buffer IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA163UA Instrument Amplifier, 3 Amplifier, 250µV, 15V/µs, 800kHz, ± 4.5V to ± 18V, SOIC
Stock Locations:
Availability:
48 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA163 is a very low-noise, low-distortion, monolithic instrumentation amplifier. Its current-feedback circuitry achieves very wide bandwidth and excellent dynamic response over a wide range of gain. It is ideal for low-level audio signals such as balanced low-impedance microphones. Many industrial, instrumentation, and medical applications also benefit from its low noise and wide bandwidth.
Unique distortion cancellation circuitry reduces distortion to extremely low levels, even in high gain. The INA163 provides near-theoretical noise performance for 200 source impedance. Its differential input, low noise, and low distortion provide superior performance in professional microphone amplifier applications.
The INA163s wide supply voltage, excellent output voltage swing, and high output current drive allow its use in high-level audio stages as well.
The INA163 is available in a space-saving SO-14 surface-mount package, specified for operation over the 40°C to +85°C temperature range.

Show

INA163UA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	36.0V (max)
Operating Voltage	4.5V ~ 18V
Supply Current	10 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	116 dB
Quiescent Current	10.0 mA
Bandwidth	800 kHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	800 kHz
Input Offset Voltage	50 µV
Input Bias Current	2 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	800 kHz
Minimum CMRR Range	100 dB
	Show
Size-Length	8.75 mm
Size-Width	4.5 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
