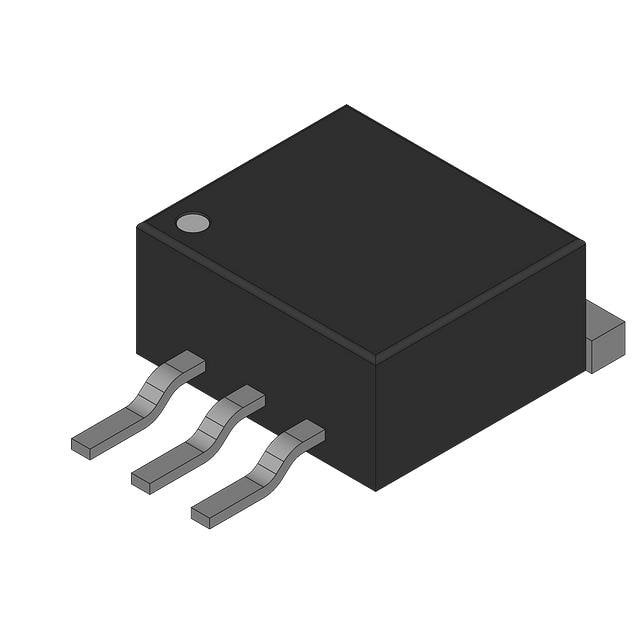

Image is for your reference only,please check specifications for details

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SPD50P03L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-3
Number of Channels	1 Channel
Polarity	P-CH
Threshold Voltage	2 V
Input Capacitance	4.56 nF
Gate Charge	178 nC
Drain to Source Voltage (Vds)	30.0 V
Continuous Drain Current (Ids)	50.0 A
Rise Time	21.7 ns
Input Capacitance (Ciss)	4590pF @25V(Vds)
Fall Time	104 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150000 mW
	Show
Size-Width	6.22 mm
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
