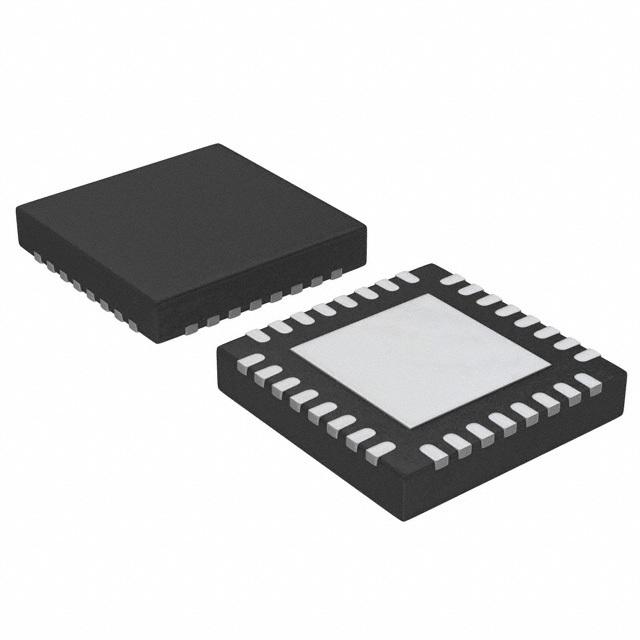

Image is for your reference only,please check specifications for details
- LPC824M201JHI33E - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC4837472
-
Category:Microcontroller, MCU IC
-
Package:HVQFN-33
-
Datasheet:Datasheet 3D Model
-
Description:MCU 32Bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 32Pin HVQFN EP Tray
-
Stock Locations:
-
Availability:261 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.68
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LPC824M201JHI33E is a 32-bit ARM Cortex-M0+ Microcontroller up to 32kB flash, 8kB SRAM, 12-bit ADC and comparator. The LPC82x family expands the LPC800 series, increasing its versatility and use through added serial I/O ports and a 12-bit ADC. An exceptionally power-efficient 32-bit microcontroller the LPC82x consumes 90µA/MHz active and offers four low power modes for more granular power management. Customers will enjoy the simplicity of designing with the LPC82x and the flexibility it provides through best-in-class serial connectivity for a variety of applications.
- ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
- System tick timer
- AHB multilayer matrix
- Serial Wire Debug (SWD) with four break points and two watch points
- Boot loader
- On-chip ROM APIs for ADC, SPI, I²C, USART, power configuration (power profiles) and integer divide
- Flash In-Application Programming (IAP) and In-System Programming (ISP)
- High-current sink driver (20mA) on two true open-drain pins
- GPIO interrupt generation capability with Boolean pattern-matching feature on eight GPIO inputs
- Switch matrix for flexible configuration of each I/O pin function
- CRC engine
- DMA with 18 channels and 9 trigger inputs
- Windowed Watchdog timer (WWDT)
- Unique device serial number for identification
LPC824M201JHI33E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 33 Pin |
| Case/Package | HVQFN-33 |
| Frequency | 30 MHz |
| Supply Voltage (DC) | 1.80V (min) |
| Operating Voltage | 1.8V ~ 3.6V |
| Number of Positions | 33 Position |
| Clock Speed | 30.0 MHz |
| RAM Memory Size | 8 KB |
| Number of Bits | 32 Bit |
| Power Dissipation | 1500 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 29 Input IO |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1500 mW |
| Supply Voltage | 1.8V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
