Description
- The LQH32PN series wire wound Chip Coil/Power Inductor used for general electronics equipment design.
- Magnetic shield of magnetic powder in resin
- 1MHz Test frequency
- -40 to 85°C Operating temperature range
- Sharp material such as a pair of tweezers or other material such as bristles of cleaning brush, shall not be touched to the winding portion to prevent the breaking of wire.

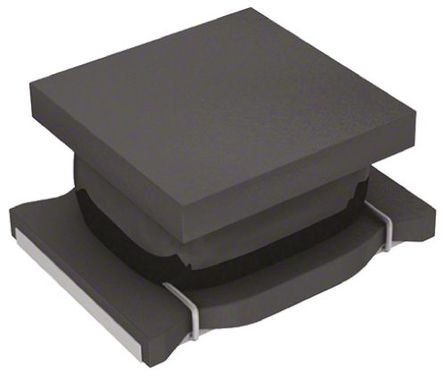

LQH32PN100MN0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 700 mA |
| Capacitance Tolerance | ±20 % |
| Inductance | 10 µH |
| Self Resonant Frequency | 30 MHz |
| Part Family | LQH |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤456 mΩ |
| Current Rating (DC) | 750 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.38 Ω |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 1.55 mm |
| Weight | 0.077 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
