Description
- LQH55D series are winding type coils for choke by using high performance thick wire wound technology. Features 1. Low direct current resistance, large current capacity and large inductance 2. For DC-DC converters and DC power supply circuits

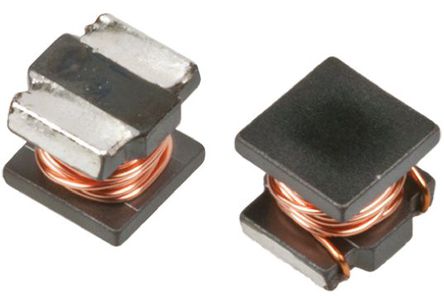

LQH55DN1R0M03L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2220 |
| Current Rating | 4.00 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 1 µH |
| Self Resonant Frequency | 150 MHz |
| Part Family | LQH |
| Resistance | 19.0 mΩ |
| Resonant Frequency | 150 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | 0.0266 Ω |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 19 mΩ |
| Show | |
| Size-Length | 5.7 mm |
| Size-Width | 5.0 mm |
| Size-Height | 4.7 mm |
| Weight | 0.48 g |
| Operating Temperature | -40℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 350 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
