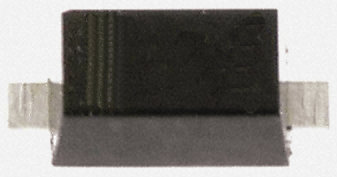

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DZ2S180C0L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SSMini2-F5-B
Number of Positions	2 Position
Power Dissipation	150 mW
Test Current	5 mA
Zener Voltage	18 V
Min Breakdown Voltage	17.5 V
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	150 mW
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
