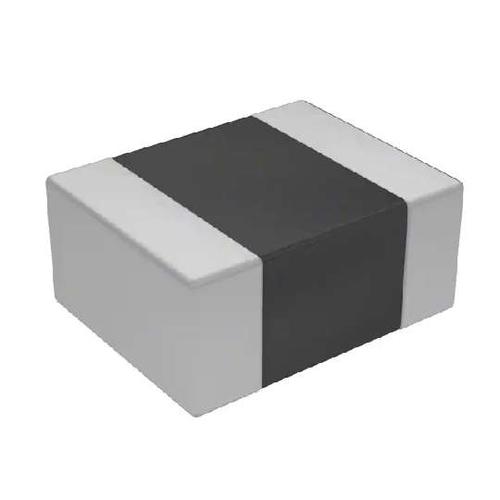

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Inductor Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 1.2A 138mOhm DCR
LQM2MPN1R5MG0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 0806 |
| Current Rating | 1.2 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 1.5 µH |
| Self Resonant Frequency | 50 MHz |
| Part Family | LQM |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤138 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±20 % |
| Resistance (DC Max) | 0.138 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.9 mm |
| Weight | 0.012 g |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
| Lead-Free Status |
