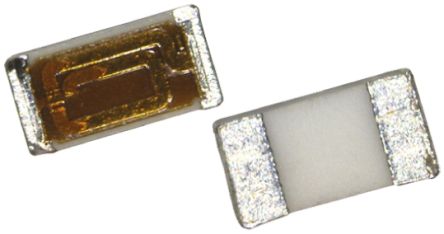

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 6.8nH Unshielded Thick Film Inductor 130mA 900mOhm Max 0402 (1005 Metric)
LQP15MN6N8B02D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Current Rating | 130 mA |
| Inductance | 6.8 nH |
| Self Resonant Frequency | 6 GHz |
| Q-Factor | 13.0 |
| Part Family | LQP |
| Resistance | 900 mΩ |
| Resonant Frequency | 6.00 GHz |
| Shielding | No |
| Inductance Tolerance | ±0.1 nH |
| Test Frequency | 500 MHz |
| DC Resistance (DCR) | ≤900 mΩ |
| Current Rating (DC) | 130 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.9 Ω |
| Show | |
| Size-Length | 1.0 mm |
| Size-Width | 0.5 mm |
| Size-Height | 0.35 mm |
| Weight | 0.0006 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 10000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2020/01/16 |
| ECCN Code | EAR99 |
