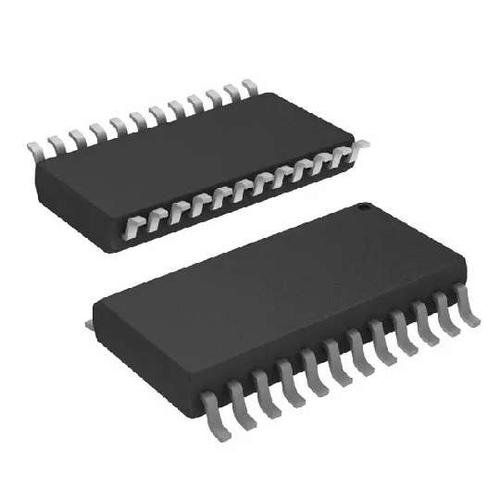

Image is for your reference only,please check specifications for details
- ADS7800JU - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC23675779
-
Category:Analog to Digital, ADC IC
-
Package:SOIC-24
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter 12Bit 3us Sampling Analog-to-Digital Converter ADC Single SAR 333KSPS 12Bit Parallel 24Pin SOIC Tube
-
Stock Locations:
-
Availability:224 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 223.78
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS7800 is a complete 12-bit sampling analog-to-digital converter using state-of-the-art CMOS structures. It contains a complete 12-bit successive approximation A/D converter with internal sample/hold, reference, clock, digital interface for microprocessor control, and three-state output drivers.
- The ADS7800 is specified at a 333kHz sampling rate. Conversion time is factory set for 2.70µs max over temperature, and the high speed sampling input stage insures a total acquisition and conversion time of 3µs max over temperature. Precision, laser-trimmed scaling resistors provide industry-standard input ranges of ±5V or ±10V.
- AC and DC performance are completely specified. Two grades based on linearity and dynamic performance are available to provide the optimum price/performance fit in a wide range of applications.
- The 24-pin ADS7800 is available in plastic and side-braze hermetic 0.3" wide DIPs, and in an SOIC package. It operates from a +5V supply and either a 12V or 15V supply. The ADS7800 is available in grades specified over 0°C to +70°C and 40°C to +85°C temperature ranges.
ADS7800JU Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SOIC-24 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 18.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 215 mW |
| Sample Rate | 333 ksps |
| Power Consumption | 135 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 215 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 15.4 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
