52305C muRata - Inductor - ManyChip Electronics

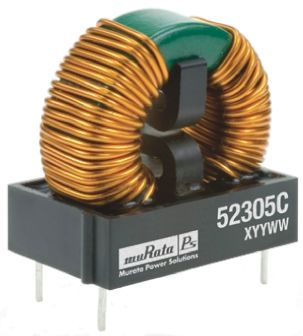

Image is for your reference only,please check specifications for details

52305C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC16593444
Category:
Inductor
Package:
Vertical, 4 PC Pin
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 52305C Дроссель, синфазный, 3 мГн, серия 5200, 3.5 А, 25.5 мм x 16.3 мм x 31 мм
Stock Locations:
Availability:
56 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.32

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Синфазный дроссель на 2 линии, для сквозного монтажа, 3.5 А, сопротивление постоянному току 45 мОм

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Vertical, 4 PC Pin
Inductance	3 mH
DC Resistance (DCR)	≤45 mΩ
Current Rating (Max)	3.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	45 mΩ
	Show
Size-Length	24 mm
Size-Width	16.3 mm
Size-Height	31 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
