Description

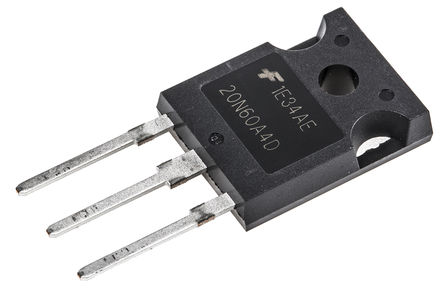

The HGTG20N60A4D is a 600V N-channel IGBT with anti-parallel hyper fast diode. This SMPS series is a member of the MOS gated high voltage switching IGBT family. IGBT combines the best features of MOSFET and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. Offers lower conduction loss and lower switching loss for designing high efficiency and reliable systems. Fairchild offers an extensive portfolio of IGBT devices by various process technologies from 300V to greater than 1200V. Optimized manufacturing process results in better control and repeatability of the top-side structure, resulting in tighter specifications and better EMI performance. This product is general usage and suitable for many different applications.
55ns at TJ = 125°C Fall time
ESD sensitive device, take proper precaution while handling the device.

Show

HGTG20N60A4D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	70.0 A
Power Rating	190 W
Number of Positions	3 Position
Polarity	N-Channel
Power Dissipation	290 W
Rise Time	12 ns
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	35 ns
Input Power (Max)	290 W
Fall Time	32 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	290000 mW
	Show
Size-Length	15.87 mm
Size-Width	4.82 mm
Size-Height	20.82 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
