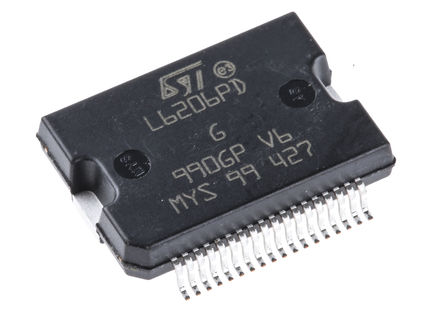

Image is for your reference only,please check specifications for details

L6206PD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC5831132
Category:
Motor Driver
Package:
PowerSO-36
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6206PD Motor Driver, Dual, DMOS, 8V to 52V supply, 52V/2.8A/2Outputs, SOIC-36
Stock Locations:
Availability:
1,158 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.74

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6206PD is a DMOS dual Full-bridge Driver for motor control applications, realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. This device features thermal shutdown and non-dissipative over-current detection on the high-side power MOSFETs plus a diagnostic output that can be easily used to implement the over-current protection.
Programmable high-side over-current detection and protection
Diagnostic output
Paralleled operation
Cross conduction protection
Under-voltage lockout
Integrated fast free wheeling diodes

Show

L6206PD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	PowerSO-36
Supply Voltage (DC)	52.0V (max)
Number of Outputs	2 Output
Output Voltage	52 V
Output Current	2.8 A
Number of Channels	4 Channel
Number of Positions	36 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	16 mm
Size-Width	11.1 mm
Size-Height	3.3 mm
Operating Temperature	-25℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
