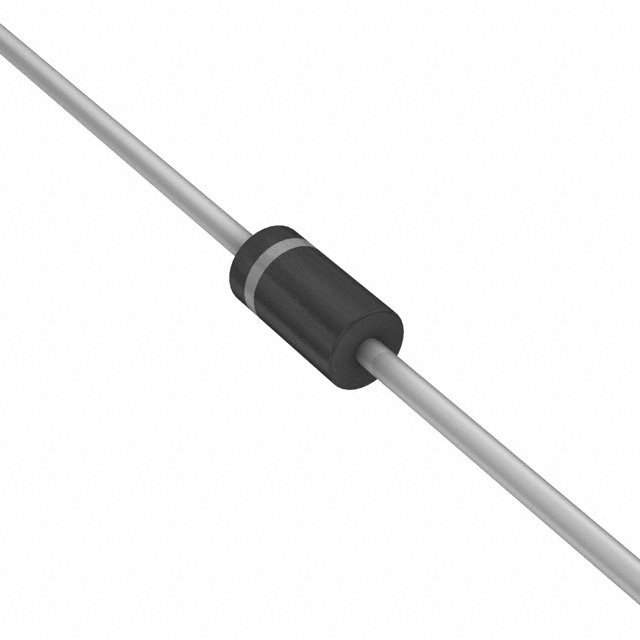

Image is for your reference only,please check specifications for details
- 1N5333B - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC135491103
-
Category:Zener Diode, Zener
-
Package:T-18
-
Datasheet:Datasheet 3D Model
-
Description:Diode Zener Single 3.3V 5% 5W 2Pin Case 017AA-01 Box
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.22
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Zener Diode 3.3 V 5 W ±5% Through Hole Axial
1N5333B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-18 |
| Voltage Rating (DC) | 3.30 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 5.00 W |
| Forward Voltage | 1.2V @1A |
| Test Current | 380 mA |
| Zener Voltage | 3.3 V |
| Input Power (Max) | 5 W |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Operating Temperature | -65℃ ~ 200℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Contains Lead |
