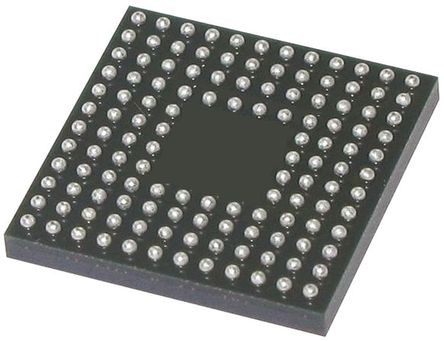

- AD9928BBCZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC11933861
-
Category:Active Chip
-
Package:BGA-128
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD9928BBCZ Special Function IC, CCD Signal Processor, Precision Timing Generator, 14Bit, 1.6V to 2V, BGA-128
-
Stock Locations:
-
Availability:4,138 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 26.76
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD9928 is a highly integrated CCD signal processor for digital still camera applications. It includes a dual analog front end with analog-to-digital conversion, combined with a full-function programmable timing generator and 18-channel vertical driver (V-driver) for a 2-channel output CCD. The timing generator is capable of supporting up to 24 vertical clock signals internally, and the on-chip V-driver supports up to 18 high voltage outputs. A _Precision Timing_™ core allows adjustment of high speed clocks with approximately 390 ps resolution at 40 MHz operation. The AD9928 also contains eight general-purpose outputs, which can be used for shutter and system functions.
- Each analog front end includes black level clamping, CDS, VGA, and a 14-bit ADC. The timing generator provides all the necessary CCD clocks: RG, H-clocks, V-clocks, sensor gate pulses, substrate clock, and substrate bias control.
- The AD9928 is specified over an operating temperature range of –25°C to +85°C.
- **Applications**
- Digital still cameras
- Medical imaging
- Industrial cameras
- ### Features and Benefits
- Registers similar to AD9920A and AD9990
- Timing generator with 18-channel V-driver
- Serial data output with reduced range LVDS interface
- 1.8 V dual AFE core
- Internal LDO regulators for compatibility with 3 V systems
- Correlated double sampler (CDS) with −3 dB, 0 dB, +3 dB, and +6 dB gain
- 6 dB to 42 dB, 10-bit variable gain amplifier (VGA)
- 14-bit, 40 MHz analog-to-digital converter (ADC)
- Please see data sheet for additional features.
AD9928BBCZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 128 Pin |
| Case/Package | BGA-128 |
| Number of Channels | 2 Channel |
| Number of Positions | 128 Position |
| Power Dissipation | 190 mW |
| Resolution (Bits) | 14.0 Bit |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage (Max) | 2 V |
| Supply Voltage (Min) | 1.6 V |
| Input Voltage | 3 V |
| Show | |
| Size-Length | 9 mm |
| Size-Width | 9 mm |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
