Description

The LQW series from Murata are wire wound inductors used for general purpose applications. These inductors with high Q values are mainly used in matching circuits of RF units for excellent attenuation characteristics in band pass filters. They are also used in the matching applications of antennas for maintaining transmission and reception sensitivity. Innovative coil and case structures provide low Rdc characteristics.
Inductance value ranges from 1.1nH to 4.7µH
EIA 0201, 03015, 0402, 0603, 0805, 1008, 1206 case sizes available
±0.5nH, ±5%, ±10%, ±20%, ±30%tolerance
Operating temperature range -55°C to +125°C
Low DC resistance
Extremely high Q (Quality factor) value
Large currents can be supported

Show

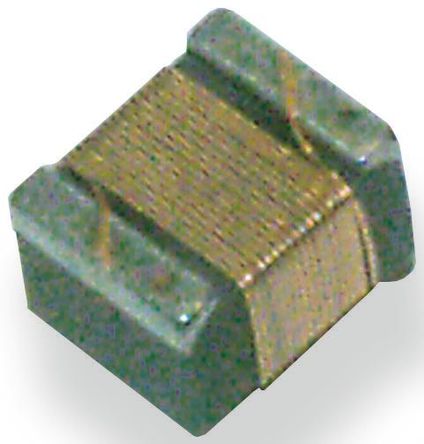

LQW15AN2N2C10D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1005
Case/Package	0402
Current Rating	1 A
Inductance	2.2 nH
Self Resonant Frequency	14 GHz
Q-Factor	25.0
Part Family	LQW
Resistance	27.0 mΩ
Resonant Frequency	14.0 GHz
Inductance Tolerance	±0.2 nH
Test Frequency	100 MHz
DC Resistance (DCR)	≤27 mΩ
Current Rating (DC)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.027 Ω
	Show
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
