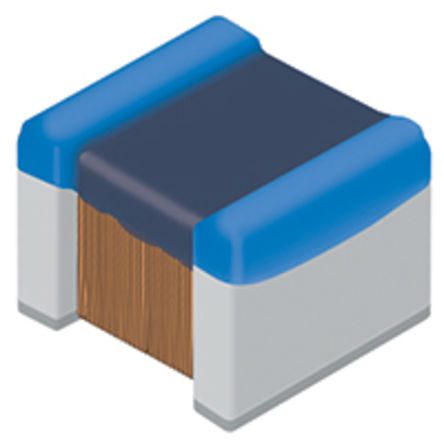

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LQW series from Murata are wire wound inductors used for general purpose applications. These inductors with high Q values are mainly used in matching circuits of RF units for excellent attenuation characteristics in band pass filters. They are also used in the matching applications of antennas for maintaining transmission and reception sensitivity. Innovative coil and case structures provide low Rdc characteristics.
Inductance value ranges from 1.1nH to 4.7µH
EIA 0201, 03015, 0402, 0603, 0805, 1008, 1206 case sizes available
±0.5nH, ±5%, ±10%, ±20%, ±30%tolerance
Operating temperature range -55°C to +125°C
Low DC resistance
Extremely high Q (Quality factor) value
Large currents can be supported

Show

LQW2UAS1R0J00L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	1008
Current Rating	370 mA
Capacitance Tolerance	±5 %
Inductance	1 µH
Self Resonant Frequency	290 MHz
Q-Factor	35.0
Part Family	LQW
Inductance Tolerance	±5 %
Test Frequency	25 MHz
DC Resistance (DCR)	≤1.75 Ω
Current Rating (DC)	370 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	1.75 Ω
	Show
Size-Length	2.62 mm
Size-Width	2.4 mm
Size-Height	1.83 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
