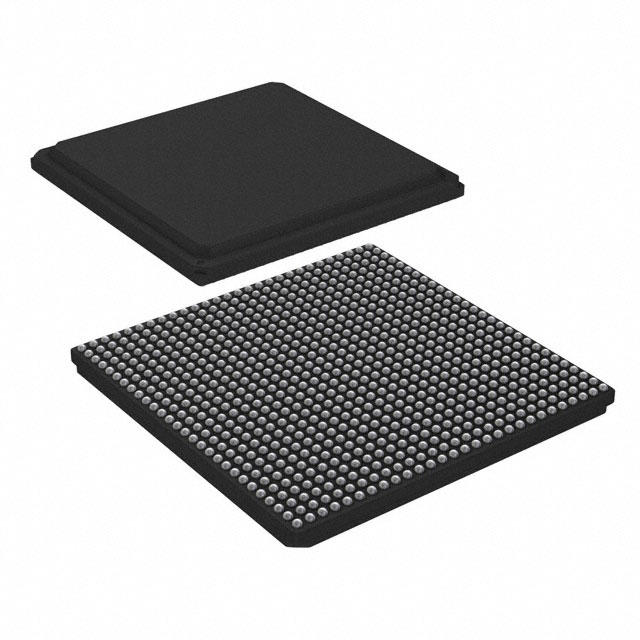

Image is for your reference only,please check specifications for details
Updated at 12/12/2024 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The QorIQ® LS1046A and LS1026A processors integrate quad 64-bit Arm® Cortex A72 cores with packet processing acceleration and high speed peripherals. They are pin-compatible with LS1023A, LS1043A and LS1088A SoC to provide performance scaling for 64- bit Arm, ranging from dual-A53 through octal-A53 to quad-A72 core processors, while maintaining hardware and software compatibility.
- MoreLess
- ## Features
- ### Core Complex
- * Four Arm Cortex A72 cores
- * 2MB L2 cache
- ### Networking Elements
- * 2x 10 GbE, 1x 2.5 GbE, and 4x GbE
- * Eight lane SerDes up to 10 GHz multiplexed across controllers supporting:
- * Three PCI Express ® Gen 2 interfaces
- * SATA 3.0 Interface
- ### Accelerators and Memory Controllers
- * DPAA Parse, Classify and Distribution Engines
- * Integrated security engine
- * DDR4
- ### Basic Peripherals and Interconnect
- * 3x PCIe 3.0 Controllers, x4, x2, x1
- * 3x USB 3.0 with integrated PHY
- * SATA 3.0 controller
- * Quad SPI
- ### Additional Features
- * QorIQ ® Platform"s Trust Architecture
- * Arm SMMU for hardware enhanced virtualization
- * FCPBGA 23x23mm
- * Pin-compatible with LS1023A, LS1043A and LS1088ALS1046A Development Tools
- * **Software**
- * _Development Software_
- * CodeWarrior Development Software for Arm® v8
- * _Software Development Kits_
- * Layerscape Software Development Kit
- * Linux® SDK for QorIQ® Processors
- * **Hardware**
- * _Reference Designs_
- * QorIQ LS1046A Reference Design Board
- * _Emulators/Probes_
- * QorIQ LS Processor Probe Tips for CodeWarrior TAP
- * CodeWarrior® TAP
- * **Support**
- * Security Consultation for QorIQ
- * QorIQ® Linux SDK Support
- * QorIQ Services
LS1046ASE8T1A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 780 Pin |
| Case/Package | FBGA-780 |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Operating Temperature | 0℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 5A002 |
