Description
- DESCRIPTION
- The LT®1072 is a monolithic high power switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and “Cuk”. A high current, high efficiency switch is included on the die along with all oscillator, control, and
- protection circuitry. Integration of all functions allows the LT1072 to be built in a standard 5-pin TO-3 or TO-220 power package as well as the 8-pin miniDlP. This makes it extremely easy to use and provides “bust proof” operation similar to that obtained with 3-pin linear regulators.
- The LT1072 operates with supply voltages from 3V to 60V, and draws only 6mA quiescent current. It can deliver load power up to 20 watts with no external power devices. By utilizing current-mode switching techniques, it provides excellent AC and DC load and line regulation.
- FEATURES
- ■ Available in MiniDiP, TO-220, and TO-3 Packages
- ■ Wide Input Voltage Range 3V to 60V
- ■ Low Quiescent Current—6mA
- ■ Internal 1.25A Switch
- ■ Very Few External Parts Required
- ■ Self-Protected Against Overloads
- ■ Operates in Nearly All Switching Topologies
- ■ Shutdown Mode Draws Only 50µA Supply Current
- ■ Flyback-Regulated Mode has Fully Floating Outputs
- ■ Can be Externally Synchronized
- APPLICATION
- ■ Logic Supply 5V at 2.5A
- ■ 5V Logic to ±15V Op Amp Supply
- ■ Offline Converter up to 50W
- ■ Battery Upconverter
- ■ Power lnverter (+ to –) or (– to +)
- ■ Fully Floating Multiple Outputs
- ■ Driver for High Current Supplies
LT1072CT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |

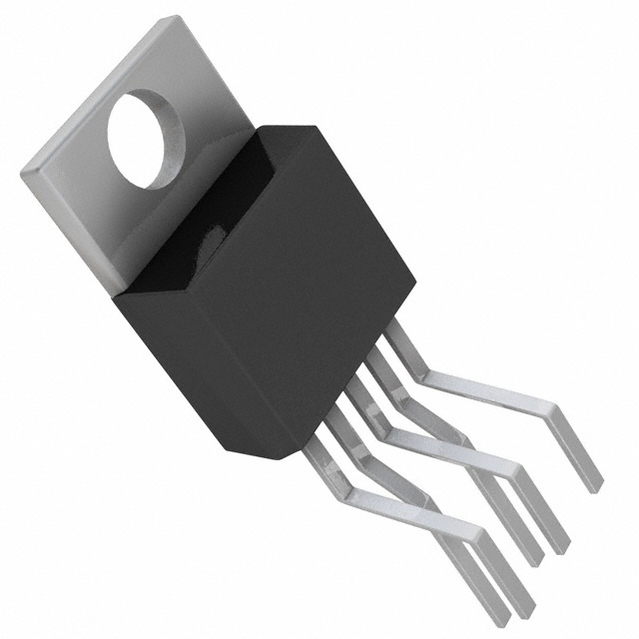

| Case/Package | TO-220 |
| Supply Voltage (DC) | 60.0V (max) |
| Number of Outputs | 1 Output |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
