LTC3416EFE Linear Technology - DC-DC Converters

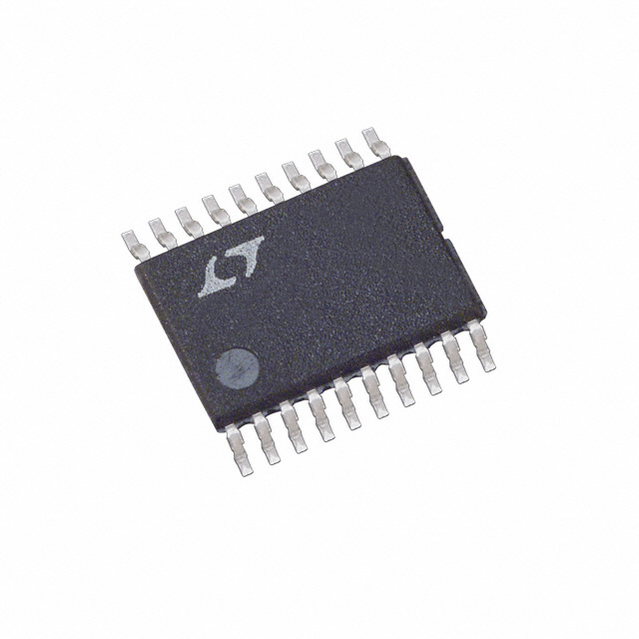

Image is for your reference only,please check specifications for details

LTC3416EFE - Linear Technology
Manufacturer:
Linear Technology
ManyChip's Part#:
MC171063496
Category:
DC-DC Converters
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Синхронный понижающий преобразователь, 2,25 В до 5,5 В, автомобильный, 20-контактный TSSOP EP
Stock Locations:
Availability:
552 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 58.65

Updated at 26/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Настройте уровень напряжения своих устройств с помощью синхронного понижающего преобразователя LTC3416EFE от Linear Technology. Единственный выход этого преобразователя может выдавать ток до 4 А. Подключите свою схему к достаточному источнику питания, используя этот преобразователь, который требует минимального входного напряжения 2,25 В, не превышающего 5,5 В. Благодаря регулируемому выходному напряжению в диапазоне от 0,8 до 5 В этот преобразователь обеспечивает оптимальное управление питанием. Коэффициент полезного действия этого преобразователя достигает 95%. При регулировании нагрузки на 0,2% и регулировании сети на 0,2%/В ваша схема способна поддерживать постоянный уровень напряжения на выходе. Его преобразователь работает на частоте от 300 до 4000 кГц. Минимальная рабочая температура этого преобразователя составляет -40 °C, а максимальная — 85 °C.

Show

LTC3416EFE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5V
Output Current	4 A
Switching Frequency	300kHz ~ 4000kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.25 V
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.25 V
Input Voltage	2.25V ~ 5.5V
	Show
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
