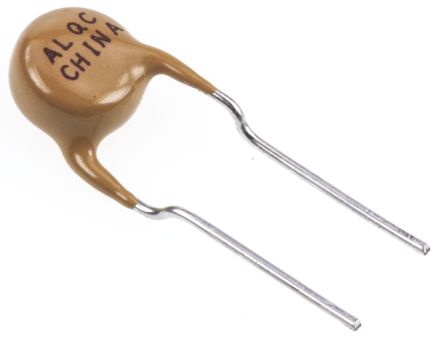

Image is for your reference only,please check specifications for details
- LVR005NK - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC48253437
-
Category:Fuse
-
Package:Radial
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 0.05A(hold) 0.12A(trip) 240VDC/240VAC 0.9W 10s 18.5Ω Radial 6.9 X 4.6mm Bag
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LVR005NK is a PolySwitch Resettable Device helps in protecting electric motors and transformers used in commercial and home appliances from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. The LVR line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC and 240VAC, for up to 2A of operating current at 20°C. They help protect against damage caused by both over current surges and over temperature faults. They also offer low resistance and are compatibly sized with fuse solutions. The PolySwitch LVR device resettable functionality and latching attributes make them a reliable, cost-effective circuit protection solution for both intermittent- and continuous-operation motor applications. Their low resistance, fast time-to-trip and low profile help circuit designers provide a safe and dependable product.
- Compatible with high-volume electronics assembly
- Assist in meeting regulatory requirements
- Hold current at 0.05A
- Trip current at 0.12A
- Radial construction
- UL94V-0 Flammability
LVR005NK Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Radial |
| Voltage Rating (AC) | 240 V |
| Operating Voltage | 240 V |
| Time to Trip | 10 s |
| Power Dissipation | 0.9 W |
| Resistance | 65 Ω |
| Holding Current | 0.05 A |
| Trip Current | 120 mA |
| Holding Current (Max) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 240 VAC |
| Voltage Rating | 240 VDC |
| Show | |
| Size-Height | 12.1 mm |
| Lead Length | 7.60 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
