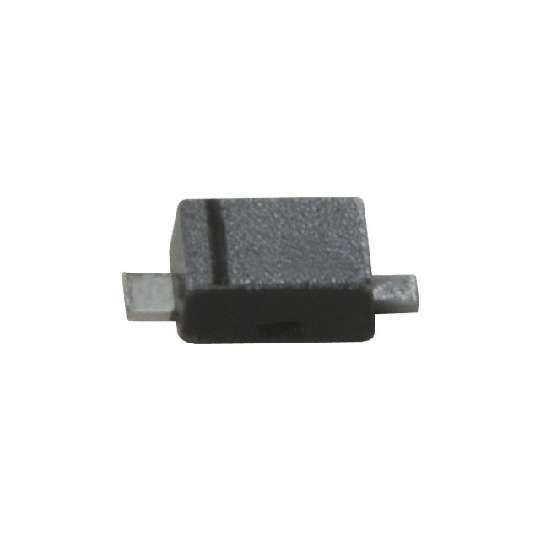

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Silicon epitAxiAl plAnAr type For switching circuits FeAtures • SmAll S-mini type pAckAge, Allowing high-density mounting • Short reVerse recoVery time • SmAll terminAl cApAcitAnce, • High breAkdown VoltAge (VR = 80
MA2J11100L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-323 |
| Voltage Rating (DC) | 80.0 V |
| Current Rating | 100 mA |
| Capacitance | 600 fF |
| Output Current | ≤100 mA |
| Forward Voltage | 1.2V @100mA |
| Polarity | Standard |
| Reverse recovery time | 3 ns |
| Maximum Forward Voltage (Max) | 1.2V @100mA |
| Junction Temperature | 150℃ (Max) |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
